AWS Multi Account Onboarding

This page explains how to configure centralized CloudWatch monitoring across multiple AWS accounts to enable organization-wide visibility in Ternary.

Prerequisites for AWS Multi Account Onboarding

The following requirements must be met before configuring multi-account monitoring:

• An AWS Cloud Engineer with administrator privileges as defined below
• A Ternary user with the Tenant Admin role to create a new AWS cloud
• If source accounts contain workloads in AWS regions that are not enabled by default, those regions must be enabled in the monitoring account to ensure metrics are collected.

The steps below describe configuration through the AWS Management Console. Programmatic setup using the provided scripts is also available and is generally less prone to human error.

Definitions

• Monitoring account

A central AWS account that aggregates observability data from source accounts. For maximum compatibility and metrics coverage, the management account is recommended as the monitoring account.

Due to CloudFormation constraints, metrics cannot be collected from management accounts unless they are also configured as the monitoring account.

• Source account

An AWS account that generates observability data for its resources. Source accounts share metrics, logs, and traces with the monitoring account.

Permissions

The following permissions are required to configure cross-account observability.

• Monitoring account

Access to the monitoring account must include either full administrator permissions or the ability to perform the following actions:

{ "Version": "2012-10-17", "Statement": [ { "Sid": "AllowSinkModification", "Effect": "Allow", "Action": [ "oam:CreateSink", "oam:DeleteSink", "oam:PutSinkPolicy", "oam:TagResource" ][ "oam:CreateSink", "oam:DeleteSink", "oam:PutSinkPolicy", "oam:TagResource" ], "Resource": "" }, { "Sid": "AllowReadOnly", "Effect": "Allow", "Action": ["oam:Get", "oam:List*"], "Resource": "*" } ] }

• Source account

This configuration is not required when using AWS Organizations. Access to each source account must include either full administrator permissions or the following:

{ "Version": "2012-10-17", "Statement": [{ "Effect": "Allow", "Action": [ "oam:CreateLink", "oam:UpdateLink" ][ "oam:CreateLink", "oam:UpdateLink" ], "Resource": [ "arn:aws:oam:::link/", "arn:aws:oam:::sink/" ][ "arn:aws:oam:::link/", "arn:aws:oam:::sink/" ] }, { "Effect": "Allow", "Action": [ "oam:List*", "oam:Get*" ][ "oam:List*", "oam:Get*" ], "Resource": "" }, { "Effect": "Allow", "Action": [ "oam:DeleteLink", "oam:GetLink", "oam:TagResource" ][ "oam:DeleteLink", "oam:GetLink", "oam:TagResource" ], "Resource": "arn:aws:oam:::link/" }, { "Action": "cloudwatch:Link", "Effect": "Allow", "Resource": "" }, { "Action": "logs:Link", "Effect": "Allow", "Resource": "" }, { "Action": "xray:Link", "Effect": "Allow", "Resource": "*" } ] }

The logs:Link and xray:Link permissions may be omitted if logs and traces are not required, as Ternary does not ingest this data.

• Optional: AWS Organizations

Using AWS Organizations is recommended, as new accounts are automatically configured as source accounts when added.

• Regional requirement

These steps must be completed for each AWS region where monitoring is required. Monitoring account configuration should be completed per region before deploying configuration to source accounts.

How to configure AWS Multi Account Onboarding in Ternary

Step 1: Access the monitoring account

Sign in to the AWS monitoring account with administrator access or the required permissions.

Step 2: Identify accounts to monitor

If using AWS Organizations, determine the scope of monitoring:

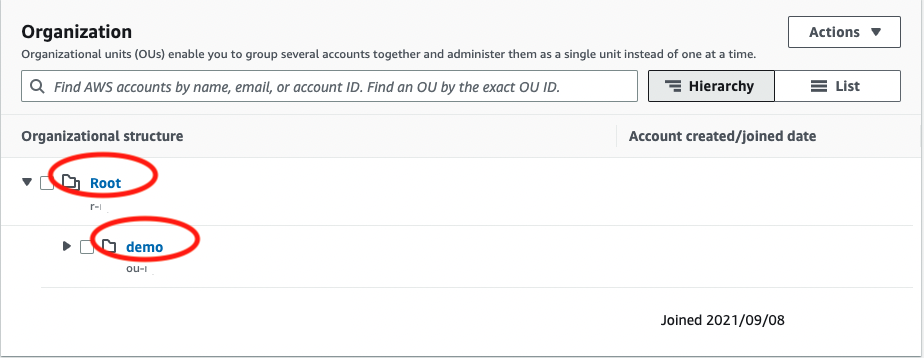

• Select the Root to monitor the entire organization, or an Organizational Unit (OU) for partial coverage

• Extract the organization ID from the ARN (for example, o-xxxxxxx)
• If suspended accounts exist, note the root OU ID (starts with r-) for exclusion during deployment

If not using AWS Organizations, prepare a list of AWS account IDs to be monitored.

Step 3: Configure CloudWatch monitoring

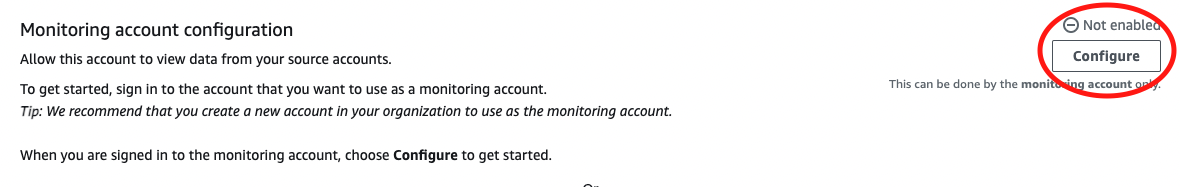

Navigate to CloudWatch → Settings → Monitoring Account Configuration and configure cross-account observability.

Logs and traces can be disabled, as Ternary does not ingest this data. Complete the setup and confirm the configuration.

Step 4: Download the CloudFormation template

After configuration:

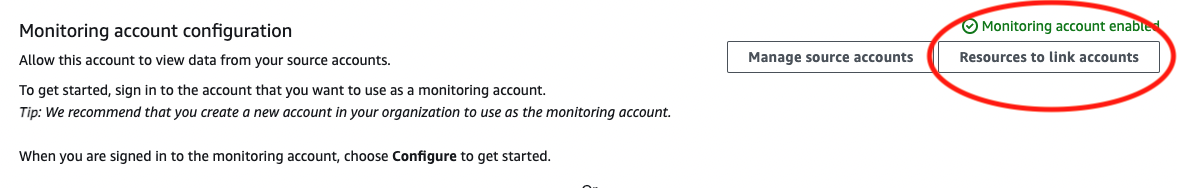

• Navigate to CloudWatch → Resources

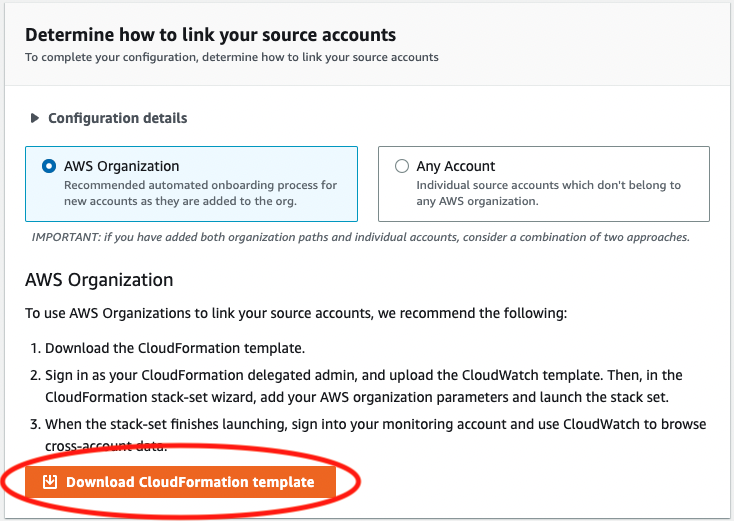

• Download the CloudFormation template used to link source accounts

If AWS Organizations is not used, ensure the “Any Account” option is selected before downloading the template.

Step 5: Deploy configuration using StackSets

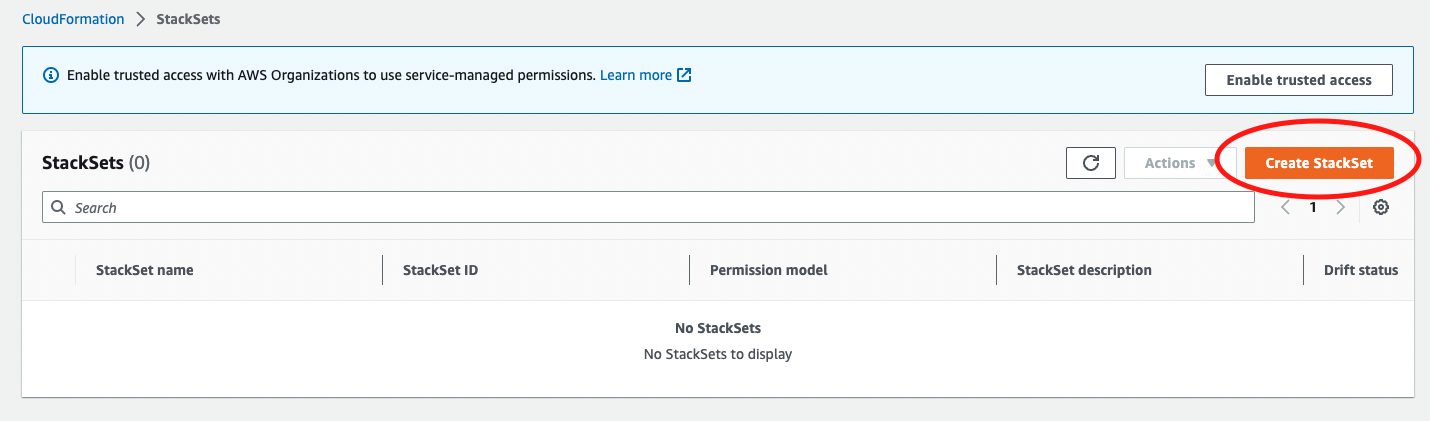

Sign in to the AWS management account and navigate to CloudFormation → StackSets → Create StackSet.

• Enable trusted access if required
• Select service-managed permissions

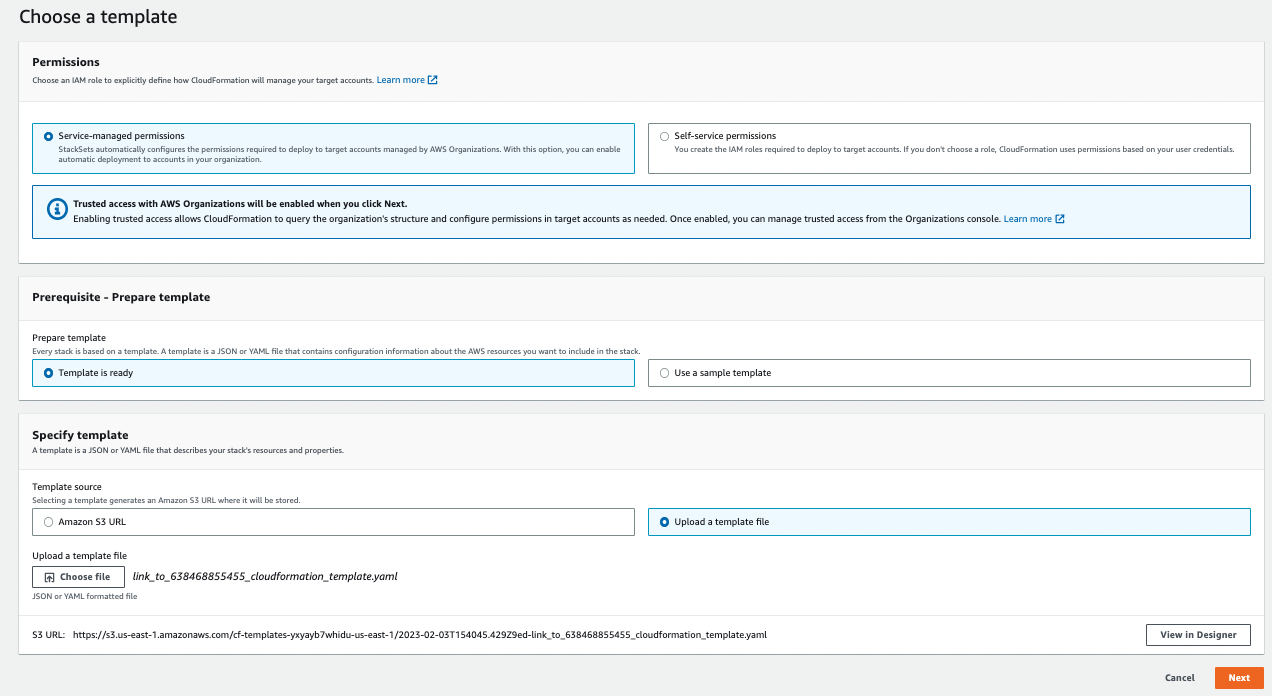

• Upload the CloudFormation template downloaded earlier

Provide StackSet details such as name and optional tags, then select the region corresponding to the monitoring configuration.

Step 6: Define deployment scope and exclusions

If suspended AWS accounts are present, Stack creation will fail unless they are excluded. Accounts can also be excluded selectively based on monitoring requirements.

Define how the StackSet is applied:

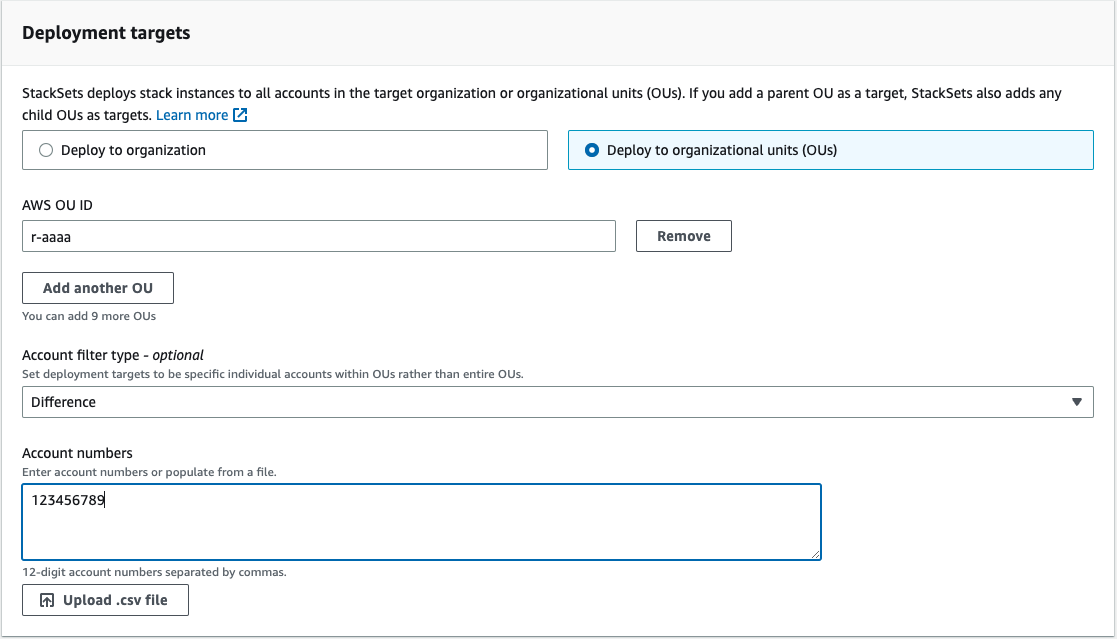

• Choose Deploy to organizational units (OUs)
• Provide the OU ID (r- for full organization or ou- for partial scope)

To exclude accounts:

• Select Difference as the account filter type
• Provide account IDs to exclude or upload a CSV file

Review the configuration and submit the StackSet.

Step 7: Repeat for additional regions

Repeat the monitoring account setup and StackSet deployment for each AWS region where centralized monitoring is required.
